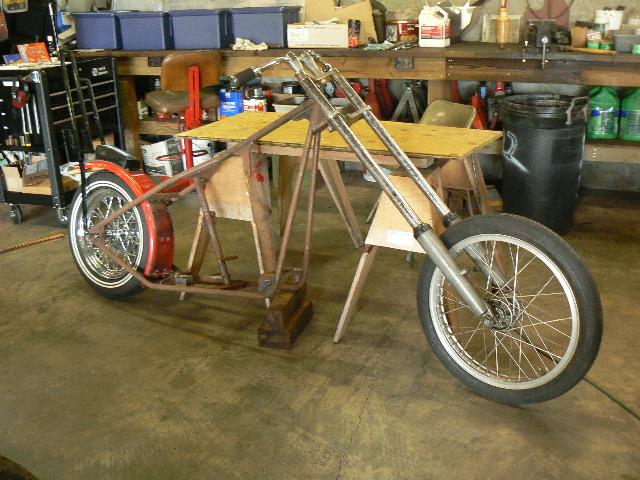

Here's my old narrowed 18 over wide glide, the 21" and 16" wheels, and the rear fender and sissy bar on the "new" frame, the fender is just propped up to get a good look at it, still need to fab some mounting brackets....
Interesting thing is that the old extended springer I have and my old glide both have exactly the same length from the bottom of the frame neck to the axle! I can run either one on this setup!
Proceeding for now with the glide setup, it's what I ran for years on my old bike and I am comfortable with it, but when I finally locate a triple clamp for the top of the springer (it's among the missing right now....) then I can fit that into the project also....
I'm also very comfortable with these narrow drag style bars set like this. I'm going to try to mount a set of bars just like this on the springer also.

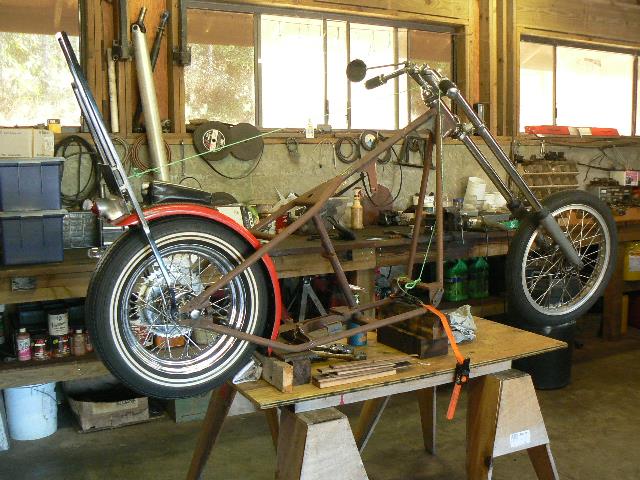

So, up on the table, strapped down, and ready to proceed....

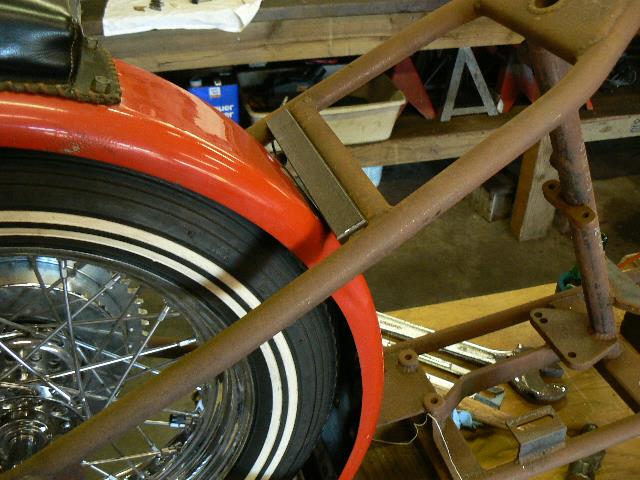

Trying to get the fender to fit the way I want, and allow for full adjustment of the rear wheel (chain adjustment), I needed to insert a bracket at the seat level for the fender. It's 1' by 1/4" angle, so will tap it for 3/8" cap screws from inside the fender. Locktight will make sure it doesn't come loose!

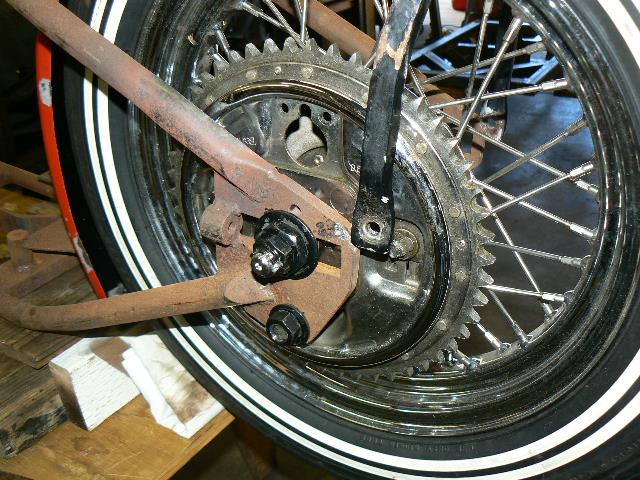

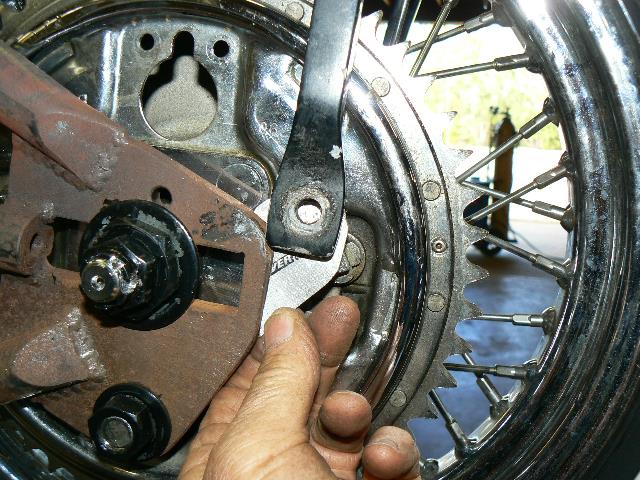

The bottom of the sissy bar needed either to be bent forward a little to catch the frame axle plate, or I needed to add a bracket to the rear of the frame, decided to add a bracket....

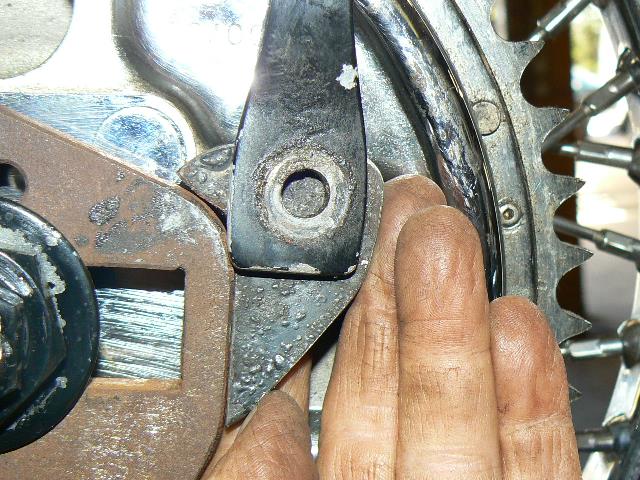

Beer carton cardboard make great template material....

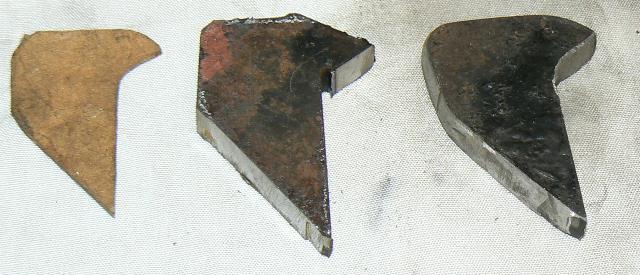

The frame axle plates are 3/8" thick, had some scrap 3/8" pieces around, the chop saw was used to roughed them out, then a little time on the grinder and they were ready to weld to the frame....
Looks good to me....

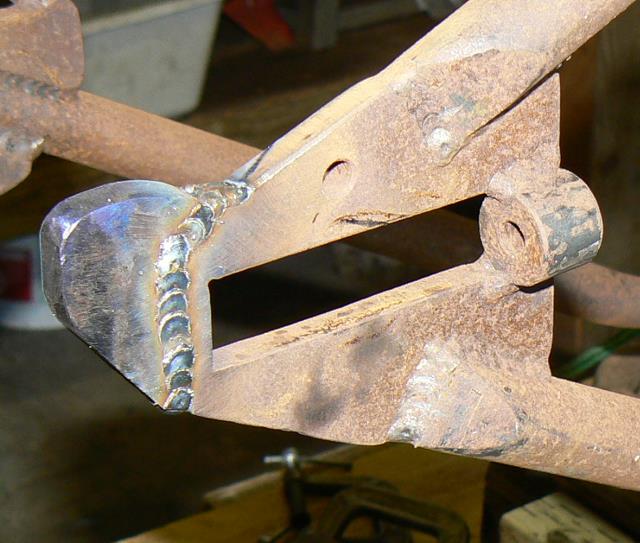

Ground a good deep "V" on each side at the weld joint and mig'd em in place....

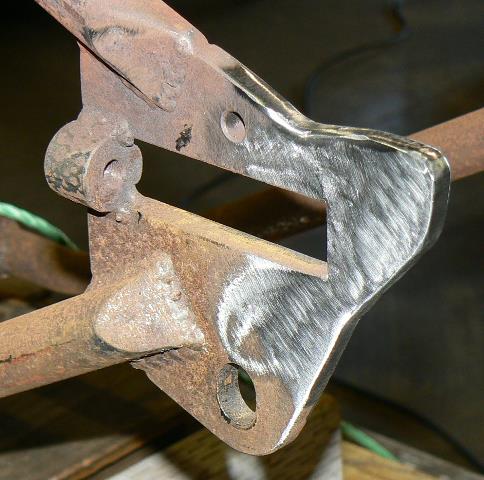

Some time with the grinder and the sanding disc and it's ready for paint....
I won't drill it until the other rear fender brackets at the front of the fender are welded in place, these holes will be the last ones I do to make sure the fender/sissy bar is straight and centered!
More later......
